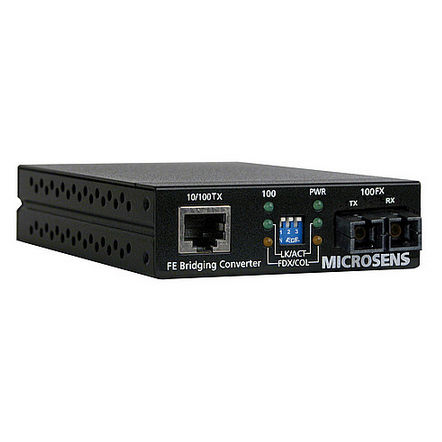

Media converter MS4002xx series

Ethernetserialfiber optics

Fast Ethernet Bridging Converter 10/100Base-T/100Base-FX Media conversion from twisted-pair to multimode or single mode fiber Optional versions for simpex fiber available (WDM) Speed conversion 10/100 Mbps (bridge mode) Automatic selection of half or full duplex mode The Fast Ethernet bridges are mainly used in company networks in order to universally combine copper and fiber optic media. In addition to the media conversion, speed matching for 10 and 100 can also be made. Therefore it is possible to integrate older 10 Mbps network equipment into a Fast Ethernet Network. The equipment is designed as a compact desktop device with an external power supply (included in the delivery package). In addition to the individual use of the device, a central arrangement can be made for which a 19“ rack is available with and integrated power supply (also redundant as an option).
