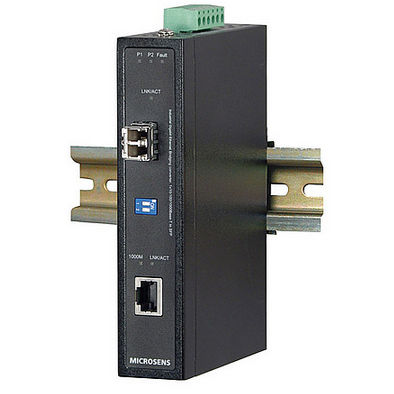

Industrial Ethernet bridge MS655060X

Fast Ethernet and Gigabit Ethernet Bridging Converter Optional converter or bridging function Power-over-Ethernet optional Automatic speed adjustment per Auto Negotiation Integrated Auto Crossover function for use of standardized patch cable Link Through function SFP-Slot for 1000Base-X (GBE version) extended temperature range -40 to +75 °C The new fast and Gigabit Ethernet Bridging converter of the Industrial Ethernet Entry Line offer transmission speeds up to 1 Gbps in Industrial Ethernet applications. In the office area Gigabit Ethernet has already established as the standard protocol. To integrate industrial end devices direct, MICROSENS offers the new Gigabit Ethernet Bridging Converter. Beside the media conversion from copper to fiber the devices are doing a speed adaptation of 10/100Base-TX for Fast Ethernet and 10/100/1000Base-T for Gigabit Ethernet. This enables the direct connection of end devices with different speed to the existing central switch. The devices are immediately ready for operation, a configuration by management is not necessary. With a pluggable connector the power is supplied (redundant possible) and offers the monitoring of the device by a relay.
