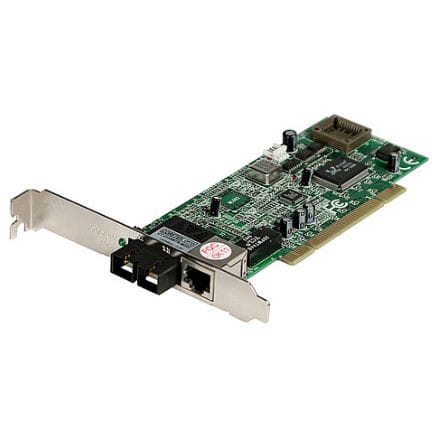

PCI bus network interface card MS482681

EthernetEthernetfor fiber optics

Fast Ethernet PCI 100Base-FX High Performance Supports 32-bit Bus Master operation PCI bus clock speed range: 16.75 to 40 MHz Supports up to 128K bytes Boot ROMWake-On-LAN (WOL) function and remote wake-up (Magic packet, LinkChg and Microsoft wake-up frame) Supports half-duplex or full-duplex operation Compliant with PCI plug-n-play Low CPU utilization Supports diagnostic program IEEE 802.3u 100BASE-FX compatible IEEE 802.3x full-duplex flow control Support PCI Specifications Revision 2.2 Status LEDs for diagnostics optional Version with 10/100TX Port The MICROSENS Fast Ethernet adapter card offers the direct connection of end devices with fiber according 100Base-FX (IEEE802.3u) standard (Fiber to the desk) The connection of the adapter card is done with ST- or SC-connector. Using multimode fiber it is possible to cover distances up to 2 km. An extended version of this card offers the connection to single mode fiber.Then it is possible to transmit over distances up to 125 km.
