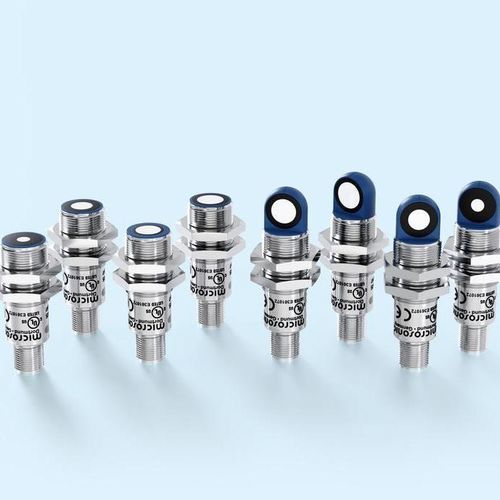

Ultrasonic proximity sensor pico+ series
cylindricalM18M12

ultrasonic proximity sensor
ultrasonic proximity sensor
ultrasonic proximity sensor
ultrasonic proximity sensor
ultrasonic proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Shape
cylindrical
Diameter
M12, M18
Output signal
PNP, with switching function, IO-Link, digital, NPN
Mounting
threaded
Protection level
UL, IP67
Other characteristics
non-contact, compact, smart
Measuring range

Min.: 25 mm
(0.98 in)

Max.: 1,300 mm
(51.18 in)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 70 °C
(158 °F)

Description

pico+ the "little guy" that can do it all: 4 ranges, 3 output signals, 2 housing variants and IO-Link interface. Highlights Variant with 90° angled head IO-Link interface for support of the new industry standard Automatic synchronisation and multiplex operation for simultaneous operation of up to ten sensors in close quarters UL Listed to Canadian and US safety standards Improved temperature compensation adjustment to working conditions within 120 seconds Smart Sensor Profiles more transparency between IO-Link Devices Basics 1 Push-Pull switching output pnp or npn basis 4 detection ranges with a measurement range of 20 mm to 1.3 m microsonic Teach-in on pin 5 0.069 mm to 0.1 mm resolution 10–30 V operating voltage LinkControl for configuration of sensors from a PC Description The pico+ ultrasonic sensors are a compact series with M18 threaded sleeves and a housing length of only 41 mm. In addition to the variants with an axial beam direction, there is also a housing variant with a 90° angled head and radial beam direction. With four detection ranges from 20 mm to 1.3 m and three different output stages, this sensor family covers a wide range of applications. Sensors with the Push-Pull output stage support SIO and IO link modes. Sensors with analogue output are optionally available with 4–20 mA current output or 0–10 V voltage output. In SIO mode, sensors are configured using the microsonic Teach-in procedure on pin 5. The sensors are Listed to applicable UL Standards and requirements by UL for Canada and the US. Sensors with switching output have three operating modes: Single switching point Two-way reflective barrier Window mode
