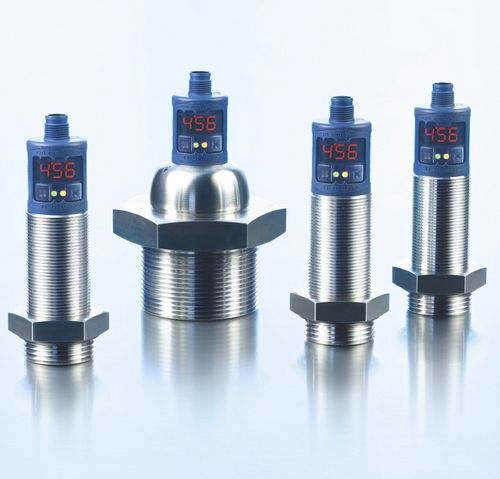

Ultrasonic level sensor hps+
for liquidsfor storage tankswith digital display

ultrasonic level sensor
ultrasonic level sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Medium
for liquids
Applications
for storage tanks
Other characteristics
with digital display, IP67
Level range

Min.: 30 mm
(1.18 in)

Max.: 8,000 mm
(26.25 in)

Process pressure

6 bar
(87.02 psi)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 70 °C
(158 °F)

Description

The HPS+Sensors is suitable for use in normal pressure or overpressure. The unit provides a teflon membrane, which gives protection from any aggressive media. The device features a stainless steel housing, that ensures resistance against chemicals. Also, it is integrated with a digital display, that indicates a mm or cm value output. Additionally, the device features 2 switching outputs, and 4 detection ranges. It works through an operating voltage of 9 up to 30 V. The unit provides a resolution of 0.025 mm up to 2.4 mm. Also, it is incorporated with a LinkControl function, which provides configuration of sensors.
