Ultrasonic level sensor hps+ series
for solidsfor sludgefor water

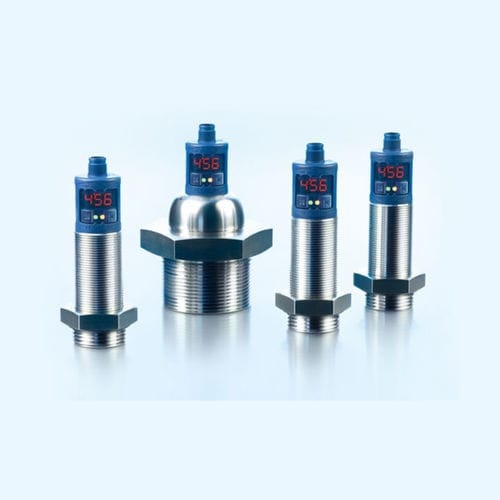

Ultrasonic level sensor - hps+ series - microsonic - for solids / for sludge / for water
Ultrasonic level sensor - hps+ series - microsonic - for solids / for sludge / for water
Ultrasonic level sensor - hps+ series - microsonic - for solids / for sludge / for water - image - 2
Ultrasonic level sensor - hps+ series - microsonic - for solids / for sludge / for water - image - 3
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Medium
for liquids, for water, for sludge, for solids
Interface
analog, digital output
Applications
for storage tanks, for fill monitoring, rugged, for OEM, for silos
Other characteristics
stainless steel, ultra-rugged, chemical-resistant, with digital display, IP67
Level range

Max.: 8,000 mm
(26.25 in)

Min.: 30 mm
(1.18 in)

Process pressure

6 bar
(87.02 psi)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Description

hps+ in safety gear - When you need chemically resistant, pressure-resistant sensors. Highlights Optionally used in normal pressure or overpressure PTFE membrane for protection against aggressive media Stainless-steel or optional PVDF housing for hps+340 for use in the food industry Sealed against the housing with an O-ring made from FFKM for the highest possible chemical resistance Digital display with direct measured value output in mm/cm or % Numeric configuration of the sensor using digital display UL Listed to Canadian and US safety standards Basics 2 switching outputs in pnp variant Analogue output plus 1 pnp switching output microsonic Teach-in using T1 or T2 buttons 0.025 mm to 2.4 mm resolution Temperature compensation 9–30 V operating voltage LinkControl for configuration of sensors from a PC Description For fill level measurements of aggressive media and in overpressure the ultrasonic transducers of the new hps+ sensors are now fitted out - as standard - with a PTFE film. It is sealed with a FFKM O-ring against the housing made of 1.4571 stainless steel or PVDF. This ensures a high degree of resistance to aggressive media. The hps+ sensors can be used for fill level measurement under normal pressure or in tanks and containers with an overpressure of up to 6 bar. Its special software filters also allow its use in containers filled from above or that have a stirring system. Pressure-tight installation in a tank is undertaken by means of a 1“ threaded flange or a 2“ one in the case of hps+340. Chemical resistance and seal tightness were tested through being stored over cellulose thinner and 1,000,000 alternating pressure stresses.
