Snap gauge

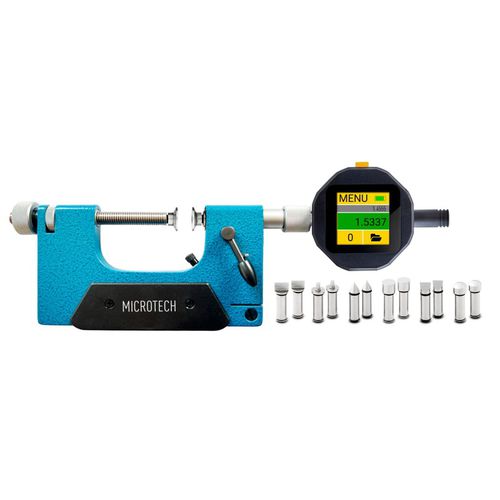

Computerized sub-micron Universal snap gauges equipped with 7 pairs of interchangeable anvils: flat, spherical, disk, blade, point, spline, knife edge and using for operative Go/NoGo control in manufacturing process. MICROTECH products sub-micron snap gauges with measuring range up to 100mm (8 inch). Computerized sub-micron Universal snap gauges equipped with high precision sub-micron indicator with 0.1 micron resolution, color Go/NoGo indication, internal memory and Wireless and USB data transfer to PC or Tablet. MICROTECH sub-micron snap gauges pass metrological control in accredited ISO 17025 laboratory and have calibration certificate • Patent UA99686, UA103982, UA126928, UA112291, UA116231, UA124020, WO2016124992 by MICROTECH • Quick Go/NoGo control (colour indication) • Built in micro computer with colour Touchscreen display 1,5” • Functions: Go/NoGo, Max/Min, Memory manager, Mathematical & Temperature error compensation • Built in Wireless data transfer to Windows, Android, iOS devices with distance up to 50 m (external antenna) • USB connection to Windows PC in keyboard or normal mode (cable including) • 100% metrological control in accreditated laboratory by ISO17025 (Ilac MRA)
