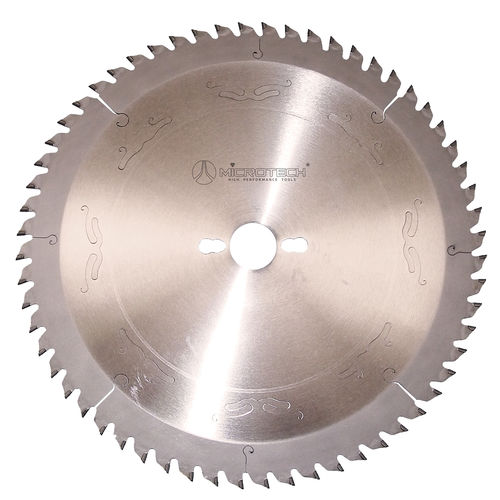

Circular saw blade LAM1003 series
cuttingPCDfor MDF

circular saw blade
circular saw blade
circular saw blade
Add to favorites
Compare this product


Characteristics

Type
circular, cutting
Blade material
PCD
Cut material
for MDF
Circular saw blade diameter

Max.: 520 mm
(20 in)

Min.: 300 mm
(12 in)

Blade thickness

3 mm, 3.2 mm, 3.5 mm
(0.12 in, 0.13 in, 0.14 in)

Number of teeth

Max.: 96 unit

Min.: 48 unit

Cutting angle

10 °, 11 °, 12 °

Description

PCD saw blade panel sizing machine H4 PCD saw blade for panel sizing machine tips H4mm. Suitable to cut from single panel to panels stack using also scoring blade. ADDITIONAL INFORMATION TYPE OF CUTTING DIA ALTEZZA PCD 4 mm SHARPENING TYPE FZ / TR / FA ANTI-NOISE SYSTEM Yes FEEDING SYSTEM Manual, Mechanic CUTTING ANGLE OF SAW BLADE Positive MATERIALS MDF HDF, MDF HDF Double face laminate, Particle board, Particle board double face laminate, Plywood, Plywood double face laminate
