Solid milling cutter FPS3003 series

insertprofilingPCD

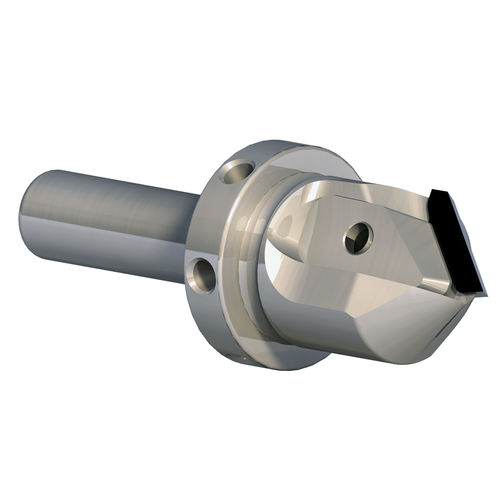

HIGH PRECISION SHANK CUTTER WITH INTERCHANGEABLE PCD PROFILED INSERTS FOR “V“ PROFILES AT 90° / 91° Insert PCD shank cutter with interchangeable profiled knife for cutting “V“ profiles at 90° / 91° Z=1. Suitable for profiling or for folding operation on different materials such as solid wood, laminated chipboard panels, playwood MDF, HDF, HPL, Trespa, Corian, Carbon fiber panels (CFRP), Teflon, plaxiglass, aluminnium and others plastic materials. So many are the advantages of this tool: Constructive geometries that eliminate any mismatch between the cutter body and the PCD insert ensuring high positioning of inserts and repeatability. Another advantage is that the PCD insert is worked in a cold conditions without undergoing any kind of stress due to welding operation. So the PCD inserts keep all the features, increasing the tool life and cutting quality. ADDITIONAL INFORMATION ROTATION Right ENGAGED TIPS 1 ALTEZZA PCD 3,5 mm ASSIALE ELICA POS/NEG Positive AXIAL ANGLE 2° TOOL BODY Steel FEEDING SYSTEM Manual, Mechanic ANTI-NOISE SYSTEM MATERIALS Aluminum, CRFC Carbon, Hard wood, HPL Corian, Light wood, MDF HDF, Painted, Particle board double face laminate, Plexiglass, Plywood double face laminate
