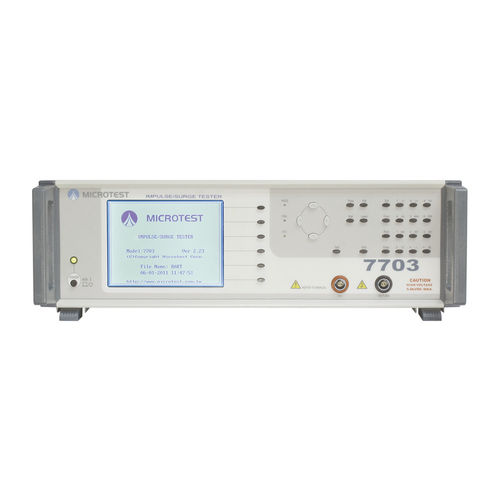

High-voltage tester 7703

surge impulsestator windingcoil

Features ■ Lowest Inductance (0.5uH) ■ HARM analysis / HFLT analysis ■ High voltage calibration ■ programmable impulse voltage ■ Built-in storage 200 sets testing waveform ■ Total area comparison ■ Differential area comparison ■ Wave comparison ■ Flat and Corona ■ Support RS-232, remote and printer interfaces MICROTEST 7703 is a Impulse Winding Tester that provides pulse voltage outputs ranging from 100V to 5000V. It utilizes damping attenuation waveforms generated by L/C resonance to analyze magnetic components for defects such as short circuits between coils or between layers of winding wire. This model is specifically designed for Inverter-Transformer products and supports high-frequency harmonic/noise analysis mode. By amplifying the waveform through high-frequency resonance, it can precisely detect insulation defects caused by high-voltage coil slot leakage. The tester also offers various comparison modes, including total area comparison, area difference comparison, corona count comparison, jitter count comparison, and waveform comparison.
