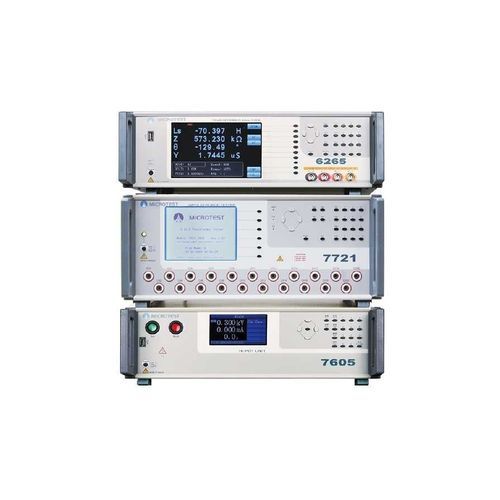

Transformer combined tester

frequencyHipothigh-voltage

Features ■ Low Voltage Electrical Test ■ Hi pot/ Insulation Test ■ Impulse Test (Layer Short Circuit) ■ 20 Channels ■ Test Frequency (200k/500k/1MHz) ■ AC Voltage Output 5000V ■ DC Votage Output 6000V ■ Insulation Resistance 12000MΩ MICROTEST 3-in-1 Transformer Integrated Test System is a comprehensive solution that combines low-voltage electrical characteristics testing and safety compliance testing/Impulse Winding testing. It offers 20 testing channels and integrates low-voltage testing (including inductance, leakage inductance, resistance, capacitance, etc.) with AC/DC withstand voltage insulation testing (up to 5000V/6000V). It ensures efficient and convenient testing for transformer products. The impulse winding test uses non-destructive high-voltage pulse testing technology. It analyzes the damping attenuation waveform generated by L/C resonance to detect short-circuit defects between transformer coils or insulation layers. To measure the inductance value of a transformer, you can use an LCR meter, which offers selectable test frequencies including 200kHz, 500kHz, and 1MHz. It supports software that allows connection to a PC, enabling the storage of test data.
