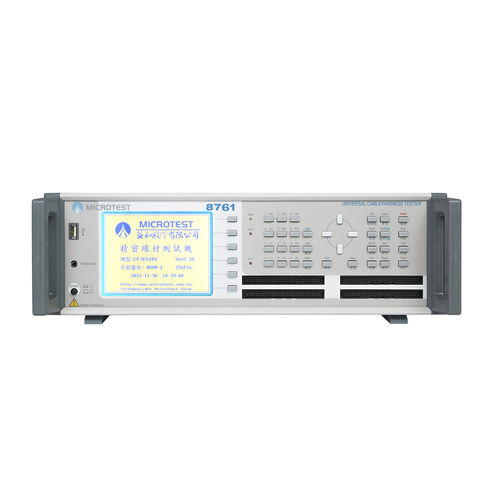

Wire harness tester 8761 Series

insulationresistanceleakage current

Features ■ 4-wire measurement conductance 1mΩ-52Ω ■ Test pin 64/128/256 ■ Number of test file up to 500 sets ■ Open/Short ■ Cond. Resistance Test ■ AC/DC Hipot Test ■ DC insulation ■ Quick conductance ■ Multiple DUT test ■ Support bar code scan and print function ■ Automatically identify the normal or reverse plugin of wire or connectors MICROTEST 8761 series Cable Harness Tester employs precise four-wire measurement technology to perform comprehensive electrical characteristic tests on wire harness products, meeting the low resistance level of 1mΩ. The testing capabilities include continuity impedance, open/short circuit, AC/DC safety withstand voltage, IR insulation, and component testing (resistor/capacitor/diode). The testing points can be selected from 64/128/256 options, with a maximum AC withstand voltage output of 1000V and a maximum DC withstand voltage output of 1500V. It supports PC connectivity software and BAR Code scanning, meeting the requirements for automated line testing in wire and connector production.
