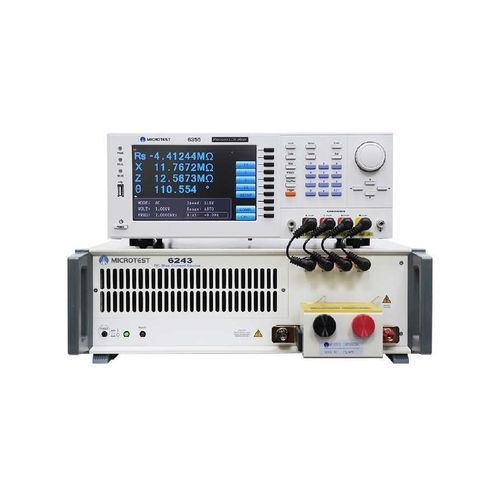

Current impulse combined tester 6350+ Seriescoilbenchtop
Add to favorites
Compare this product
Characteristics
- Test type
- current impulse
- Tested product
- coil
- Configuration
- benchtop
Description
Features
■ Frequency Response 100Hz-200k/500kHz
■ Supports maximum output DC bias current of 320A/120A
■ DCR measurement function
■ Can sustain maximum power output for long periods of time
■ Output impedance: 100Ω
■ Open/short circuit calibration function
■ Supports meter measurement mode/multi-step list testing
6355/6356+6243/6223 provide a frequency response range of 100Hz to 200k/500kHz and a maximum output current of 320A/120A. These systems are used for testing inductors, coils, ferrites, and core saturation currents.
