High-voltage tester 7750 Series

voltage impulsecomparisonstator winding

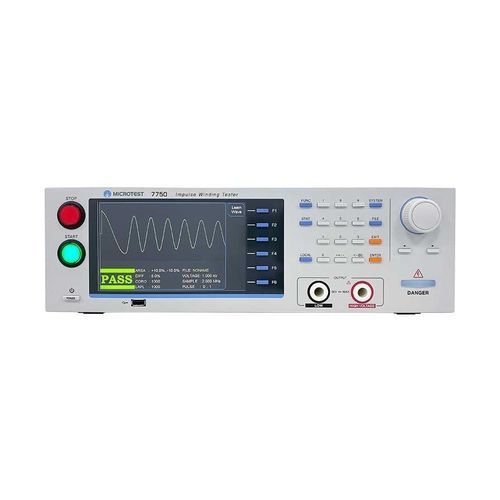

Features ■ Lowest Inductance (≥0.1μH) ■ High voltage calibration ■ programmable impulse voltage ■ 200MHz/9bit High Impulse Test Sampling Rate ■ Total Area Comparison ■ Differential Area Comparison ■ Corona Comparison ■ LAPLACIAN Comparison ■ Voltage Compensation Function MICROTEST 7750 Series is an advanced Impulse Winding Tester with a faster color display screen. It provides pulse voltage outputs of 1200V/5200V/10000V and utilizes high-speed sampling technology at 200MHz/9 bits. It offers various comparison modes such as total area, area difference, corona count, jitter count, second-order differentiation, and waveform comparison. With a testing speed of up to 10 times per second, it is ideal for high-speed production lines. For testing small components, the optional 7750-1S tester comes with the FX-IM0001 four-wire SMD component testing fixture. It features voltage compensation to minimize voltage errors caused by wiring and equivalent inductance, ensuring accurate quality control for products with small inductance.
