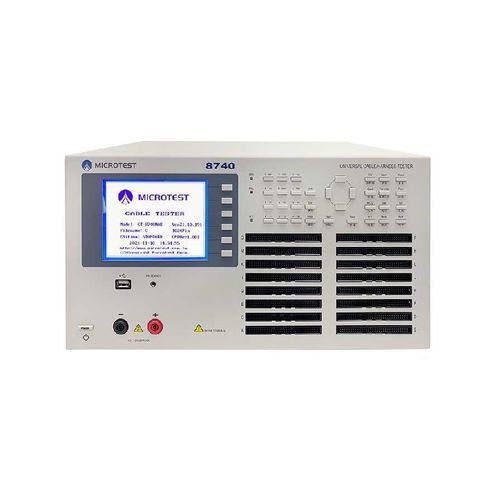

Wire harness tester 8740K Series

insulationcontinuitylow-resistance

Features ■ Test pin 1024 ■ Number of test file up to 500 sets ■ Open/Short ■ Cond. Resistance test ■ AC/DC Hipot Test ■ DC insulation ■ Quick conductance ■ Multiple DUT test ■ Support bar code scan and print function ■ Automatically identify the normal or reverse plugin of wire or connectors MICROTEST 8740K Series Cable Harness Tester employs two-wire measurement technology and is suitable for products that do not require very low resistance measurements, considering the cost factors of the testing fixture. The testing capabilities include continuity impedance, open/short circuit, AC/DC safety withstand voltage, IR insulation, and component testing (resistor/capacitor/diode). The testing points can be selected up to 1024 points, with a maximum AC withstand voltage output of 700V and a maximum DC withstand voltage output of 1000V. It supports PC connectivity software and BAR Code scanning, meeting the requirements for automated line testing in wire and connector production.
