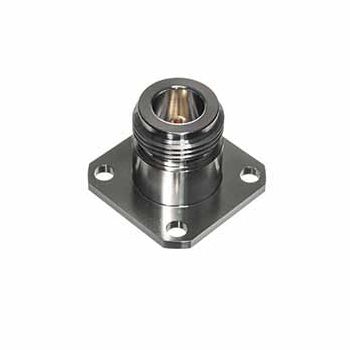

N type connector 312-00SF

RFcoaxialjack

Series Type N Gender Female Accepts Pin Diameter .036 Hermetic Seal Available YES Frequency (GHz) 18 Mounting 4-Hole Flange Flange Size 1.0 SQ Flange Hole Diameter 0.138 Available Accessories: •Launch Pin & Dielectric •Launch Pin/Tab •Launch Pin/Tab & Dielectric Electrical: •Mode Free Through 18.0 GHz Test •Low VSWR: oDC to 18.0 GHz ………1.15:1 max •Low RF Leakage _< -100 dB •Low Insertion Loss Materials/Construction: •Housing: Steel, CRES Alloy UNS S30300 Per ASTM A582, Passivated Per ASTM A967 •Contact: Beryllium Copper (BeCu), UNS C17300 Per ASTM B196, Gold Plated Per MIL-G-45204 or ASTM B488 •Dielectric: Virgin PTFE Fluorocarbon Per ASTM D1710 •Center Contact Capture: High Temperature Ultem 1000 Per ASTM D5205 •Connector Interface: Per MIL-STD-348, Figs. 304-1 and 304-2 •Raised Metal Grounding Ring for 360° Metal-to-metal Contact Environmental: •Temperature: -55° C to +165° C
