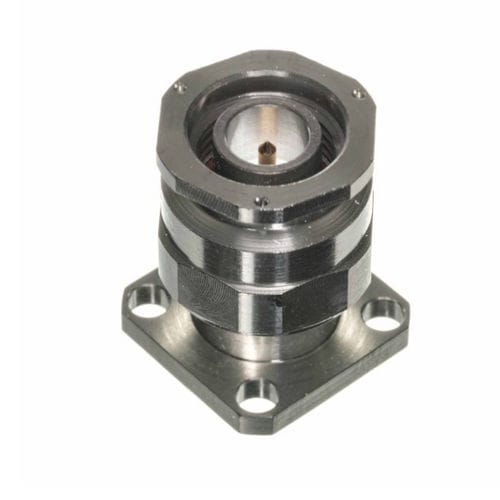

Plug connector 411-01SF RFTNCsquare
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- TNC
- Shape
- square, hexagonal
- Connection type
- male, flange, screw-in
- Material
- steel
- Product applications
- plug
- Other characteristics
- hermetic
- Impedance
50 Ohm
- Operating temperature
Max.: 165 °C
(329 °F)Min.: -55 °C
(-67 °F)
Description
Series
TNC
Gender
Male
Accepts Pin Diameter
.036
Hermetic Seal Available
YES
Frequency (GHz)
18
Mounting
4-Hole Flange
Flange Size
.687 SQ
Flange Hole Diameter
0.125
Available Accessories:
•Launch Pin & Dielectric
•Launch Pin/Tab
•Launch Pin/Tab & Dielectric
Electrical:
•Mode Free Through 18.0 GHz
•Low VSWR:
oDC to 18.0 GHz ………1.15:1 max
•Low RF Leakage _< -100 dB
•Low Insertion Loss
Materials/Construction:
•Housing: Steel, CRES Alloy UNS S30300 Per ASTM A582, Passivated Per ASTM A967
•Contact: Beryllium Copper (BeCu), UNS C17300 Per ASTM B196, Gold Plated Per MIL-G-45204 or ASTM B488
•Dielectric: Virgin PTFE Fluorocarbon Per ASTM D1710
•Center Contact Capture: High Temperature Ultem 1000 Per ASTM D5205
•Connector Interface: Per MIL-STD-348, Figs. 313-1 and 313-2
•Raised Metal Grounding Ring for 360° Metal-to-metal Contact
