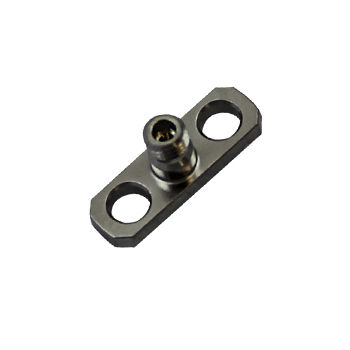

Mini connector 53029-003J
RFcoaxialjack

mini connector
mini connector
Add to favorites
Compare this product


Characteristics

Type
RF
Format
coaxial, jack, PCB
Shape
circular
Connection type
female, flange
Electrical characteristics
DC, grounding
Other characteristics
mini, hermetic, rugged, high-performance

Description

Connectors in the 0.9 mm SuperMini product line provide the superior performance of Southwest Microwave’s standard-size, high frequency connectors in a miniaturized footprint that is ideal for reduced-size PCB and panel applications, offering ultra-broad bandwidth and coupling nut mating. 0.9 mm SuperMini connectors are rugged and durable, featuring a 360° raised grounding ring and a temperature range of -55°C to 165°C. These connectors provide mode-free operation through 67 GHz, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR (1.2:1), insertion loss (0.7 dB) and RF leakage (≤ -100 dB). Gender Female Accepts Pin Diameter .012 Hermetic Seal Available NO Frequency (GHz) 18, 27, 36, 40, 50, 67 Mounting 2-Hole Flange Flange Size .438 L Flange Hole Diameter 0.089 Tools, C-bore T-53029-2
