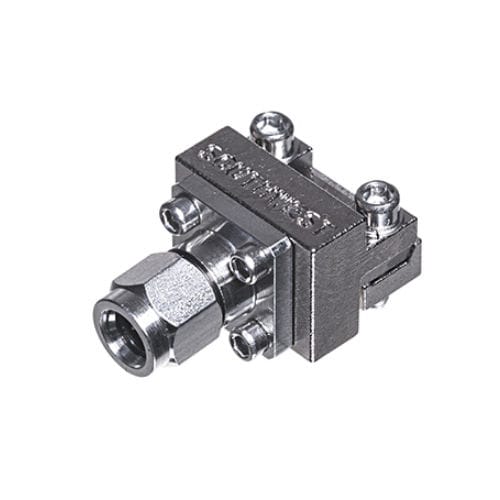

RF connector 2493-04A-6

coaxialjackPCB

Southwest Microwave’s high performance End Launch connectors are designed to provide low VSWR, mode free wideband response to 110 GHz for single-layer and multi-layer printed circuit boards where the high frequency signal is on the top layer. Available in SMA (27 GHz), 2.92 mm (K) (40 GHz), 2.40 mm (50 GHz), 1.85 mm (V), (67 GHz) and 1.0 mm (W) (110 GHz). Male and female options along with narrow body and bulkhead feed-through. Unique clamping mechanism accommodates board thickness up to .300” (7.62 mm). Robust, reusable and repairable. Multiple launch configurations provide the best possible match to circuit layout. Works on microstrip and grounded coplanar waveguide (GCPW) designs. Signal-layer microstrip and GCPW test boards available. Soldering the pin to the signal trace is optional. Design Assistance: - Printed circuit board layout and connector part number recommendation - 3D models for mechanical layout - HFSS models (version 18.0 or newer) for EM simulations upon request and availability Gender Male Frequency (GHz) 18, 27, 36, 40, 50, 67, 110 Style Standard Block (.500) Pin/Dielectric Diameters .005/.0290 PCB Thickness Up to .100
