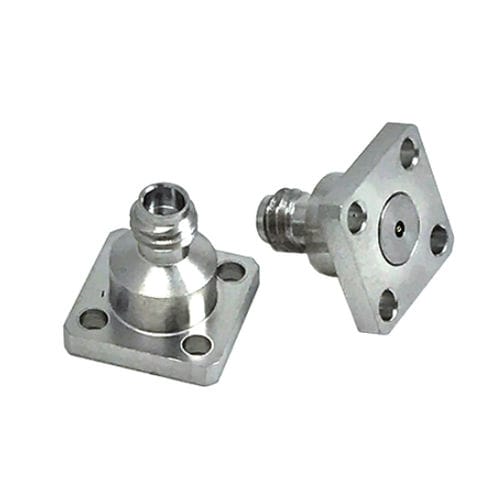

RF connector 2412-01SFcoaxialjackSMA
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- coaxial, jack, SMA
- Shape
- square
- Connection type
- female, flange, screw
- Other characteristics
- hermetic, high-performance
- Operating temperature
Min.: -55 °C
(-67 °F)Max.: 165 °C
(329 °F)
Description
Gender
Female
Accepts Pin Diameter
.009
Hermetic Seal Available
NO
Frequency (GHz)
18, 27, 36, 40, 50, 67, 110
Mounting
4-Hole Flange
Flange Size
.375 SQ
Flange Hole Diameter
0.067
Available Accessories:
•Pin and Dielectric
•Pin/Tab and Dielectric
•Short Pin/Tab
Electrical:
•Mode Free Through 110 GHz
•Low VSWR:
oDC to 50 GHz – 1:18:1 Max
o50 to 110 GHz – 1:25:1 Max
•Low RF Leakage ≤ -100 dB
•Low Insertion Loss 0.6 dB Max
Materials/Construction:
•Materials and finishes vary by product type. For data, request Product Drawings and Specifications for desired connector.
Catalogs
No catalogs are available for this product.
See all of Microwave Product Divison‘s catalogsOther Microwave Product Divison products
1.0 mm (W) Connectors
