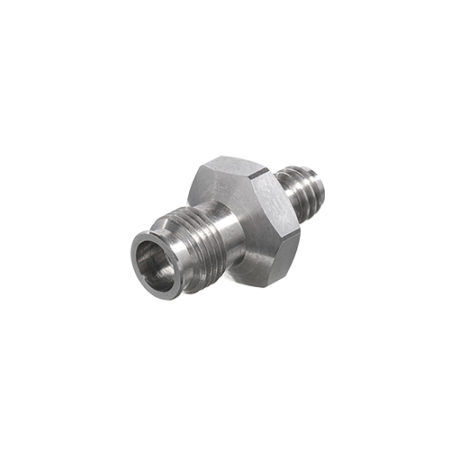

RF connector 222410-00SF

coaxialfemaleRF

As the industry leader in high-performance microwave interconnect solutions, Southwest Microwave continuously expands and innovates to offer the latest in mmWave technology while meeting the needs of our customers and delivering the lowest VSWR, insertion loss and RF leakage. We are pleased to introduce the newest in our product offerings: 90 GHz 1.35mm (E) Series, DC to 90 GHz Gender Female – Female Frequency (GHz) 18, 27, 33, 36, 40, 67, 90 Mounting Inline Style Between Series Product Details Application DC to 90 GHz High Performance Features Mode Free Through 90 GHz Low VSWR DC to 18.0 GHz……1.10:1 max 18 to 40 GHz….1.15:1 max 40 to 50 GHz….1.18:1 max 50 to 67 GHz….1.25:1 max 67 to 90 GHz…1.28:1 max 90 to 110 GHz…1.28:1 max Low Insertion Loss Leakage: <-100dB Construction Housing: Stainless Steel, Passivated Contact: Beryllium Copper (BeCu), Gold Plated Per MIL-DTL-45204 Center Contact Capture: Ultem 1000 Per ASTM D5205
