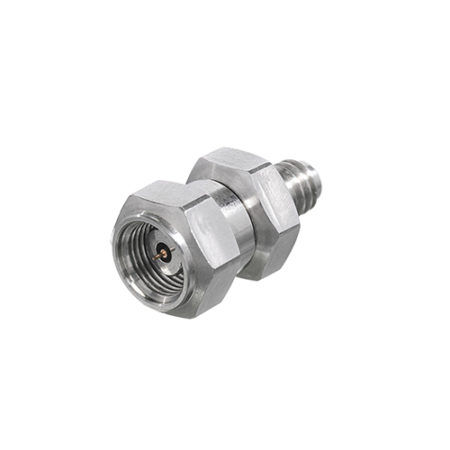

RF connector 222430-00SFcoaxialmale-femalestainless steel
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- coaxial
- Connection type
- male-female
- Material
- stainless steel, steel
- Product applications
- housing
- Other characteristics
- high-performance
- Operating temperature
Max.: 135 °C
(275 °F)Min.: -55 °C
(-67 °F)
Description
Frequency (GHz)
18, 27, 33, 36, 40, 67, 90
Mounting
Inline
Style
Between Series
Application
DC to 90 GHz High Performance
Features
Mode Free Through 90 GHz
Low VSWR
DC to 18.0 GHz……1.10:1 max
18 to 40 GHz….1.15:1 max
40 to 50 GHz….1.18:1 max
50 to 67 GHz….1.25:1 max
67 to 90 GHz…1.28:1 max
90 to 110 GHz…1.28:1 max
Low Insertion Loss
Leakage: <-100dB
Construction
Housing: Stainless Steel, Passivated
Contact: Beryllium Copper (BeCu), Gold Plated Per MIL-DTL-45204
Center Contact Capture: Ultem 1000 Per ASTM D5205
Catalogs
No catalogs are available for this product.
See all of Microwave Product Divison‘s catalogsOther Microwave Product Divison products
1.35 mm (E) Connectors
