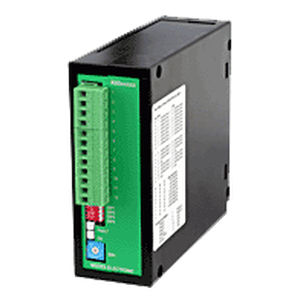

Application: Step motor driver for 2-phase step motors
Supply voltage: 24...70VDC, momentary 90VDC
Motor current/phase: 1.0/1.5/2.0/2.5Aeff; 1.4/2.1/2.8/3.5Apeak
Step resolution: 200 to 10 000 steps/revolution
Signal triggering: Pulse/direction, opto-decoupled, 5V or 24V
Output signals: Ready, opto coupler
Dimensions: Approximately 118x45x137mm (HxWxD)
Mounting/housing: DIN rail/plastic housing
Features: Resonance free running characteristics
