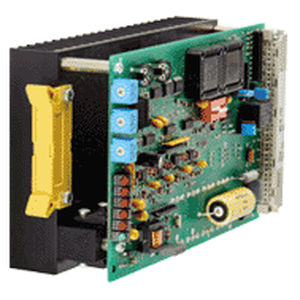

DC motor control BCD140two-phase stepper
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- two-phase stepper
- Input voltage
Max.: 160 V
Min.: 35 V
- Current
Max.: 12 A
Min.: 1 A
Description
Application: Step motor driver for 2-phase step motors
Supply voltage: 35...160VDC
Motor current/phase: 1.0 to 8.5Aeff; 1.4 to 12Apeak
Step resolution: 200/400/500/800/1000/1600/... to 12 800 steps/revolution
Signal triggering: Pulse, direction, disable, reset, boost, step resolution
Output signals: Ready, zero-phase
Dimensions: Approximately 100x75x160mm (HxWxD)
Mounting/housing: Euro card
Features: Resonance dampening, standstill/run/boost current adjustable
