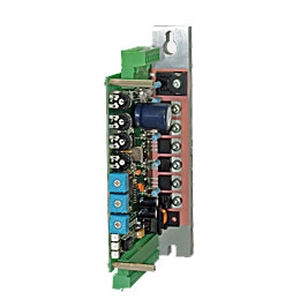

DC motor control DC4Q-OEMbrushlessOEM
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- brushless
- Other characteristics
- OEM
- Input voltage
Min.: 24 V
Max.: 48 V
- Current
Min.: 0 A
Max.: 20 A
Description
Application: Driver for:
- DC motors
- brush-less motors with Hall sensors
Supply voltage: 24...48VDC max. 52VDC
Motor current: 0...10A, momentary 20A, current limiting
Current protection: 0...10A potentiometer adjustable
Signal triggering: Digital: enable, direction, stop, max. current reduction 50%
Output signals: Ready
Dimensions: ca. 151x30x100mm (HxWxD)
Mounting/housing: Cabinet wall or OEM open
Features: With brake circuit, a unit for several motor types
