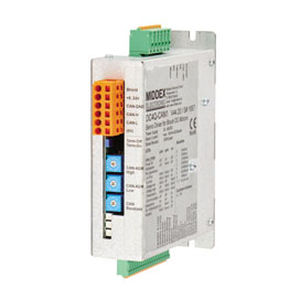

Positioning motor control DC4Q-CAN1DCstepperencoder input
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- stepper
- Other characteristics
- encoder input, CANopen
- Applications
- positioning
- Input voltage
Min.: 22 V
Max.: 48 V
- Current
Min.: 0 A
Max.: 20 A
Description
Application: Positioning controller for stepper motors, CanOpen
Supply voltage: 22…48VDC
Motor current: 0…10Aeff, max. 20Apeak
Controller signal: CanOpen, optical isolated
Inputs: Can, Encoder, reference-, limit switches
Outputs: Optical isolated outputs
Dimensions: Approximately 154x36x122mm (HxWxD)
Mounting/housing: Wall mounted/metal housing
Features: 2 optical isolated analog inputs
Industrial handling
