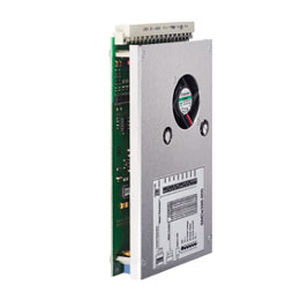

DC motor control SMDE398three-phase stepper
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- three-phase stepper
- Input voltage
Max.: 130 V
Min.: 24 V
- Current
Max.: 5.8 A
Min.: 1.4 A
Description
[D900,920] 19 Zoll Europe-Format digital
Application: Step motor driver for 3-phase step motors
Supply voltage: 24V...130V
Motor current/phase: 1,4A...5,8Aeff
with fan 8Apeak
Step resolution: 200 to 10000 steps/revolution
Signal triggering: Pulse/direction up to 250kHz
Output signals: Ready, opto-decoupled
Dimensions: Approximately 160x100x25mm (HxWxD)
Mounting/housing: Europa-Format, 19 Zoll, 3HE
Features: - Pin compatible with D900 / D920
- Automatic current reduction at standstill
- Only one card for all models
