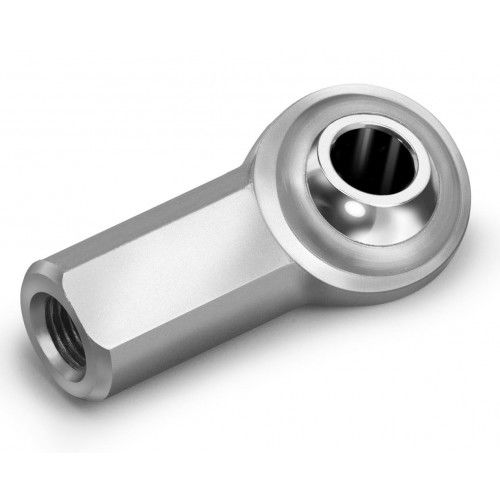

Spherical plain bearing CTF

steelchromecarbon

Application: CTF-series spherical rod ends may be assembled to a rod, pipe, tube or cable connecting linkage to allow misalignment between two moving points. Ball: chrome plated steel, surface hardened for wear resistance and plated for corrosion resistance. Configuration: housing styles are subject to change based on manufacturing considerations. Housing: chrome plated steel. For Polished Bright Decorative Chrome finishes, select the -C2 series, such as CTF-6-C2. Mounting Stud: an optional feature specified by adding an "S" after the nominal size (i.e., CTF-6S), mounting studs are made from low carbon steel, and are chrome plated. Standard stud threads are right hand. Specify mounting studs on your spherical rod ends to minimize assembly time, reduce the number of purchased components, overcome workspace limitations and increase the total misalignment to a minimum of 50°. Race: the CTF-series features a teflon bearing race. California Residents: WARNING 10-32 RH Chromed Housing, PTFE Race Weight (lbs): 0.03
