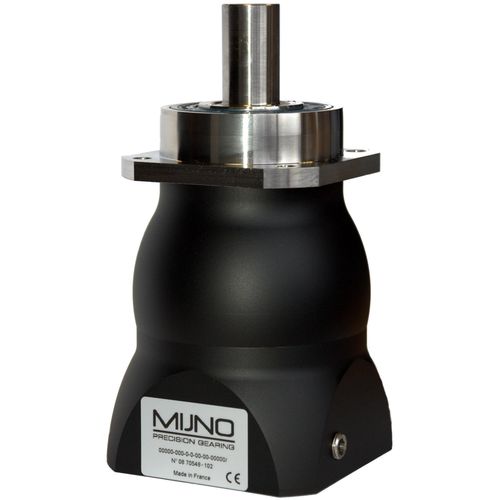

Planetary gear reducer MNT series

coaxial50 - 100 Nm200 - 500 Nm

Backlash from 8 to 1 arc-min max* High radial load acceptance High axial load acceptance High torsional stiffness 13 different reduction ratios from 3 to 100. ISO and DIN output interfaces Easy 1 minute clamping into any motor shaft - Self locating input flange. Standard case temperature range is –20°C to +90°C - Consult us for higher or lower temperature use. IP 65 standard waterproofness. Washdown stainless steel version IP-67 & 1500 psi water jets available. Optional lubricating grease for the food processing industry Easy maintenance *depending upon size, ratio and options Please contact us if the solution you are looking for cannot be found in our standard catalog. Our Applicaton Engineering department can create a custom gearbox to meet your needs. Please contact us at mijno@mijno.com LIKE ANY STANDARD MIJNO GEARBOX, THE MNT OFFERS: A high level of quality, due to the in house manufacturing of all internal mechanical components The highest quality of gears, with carburized, quenched and ground satellite gears, supplying power, precision, reliability and an everlasting, low backlash. Standard components which include bearings, lubricants, seals and joints from the most trusted international suppliers for quality without compromise A high efficiency (up to 96%) Numerous reduction ratios (multiple of 3, 4, 5, 7, 10) (other ratios available optional) A quick, easy and reliable assembly to the motor (without adapting flange) Dual screws coupling providing perfect balancing, perfect centering, and strong grip with the motor shaft
