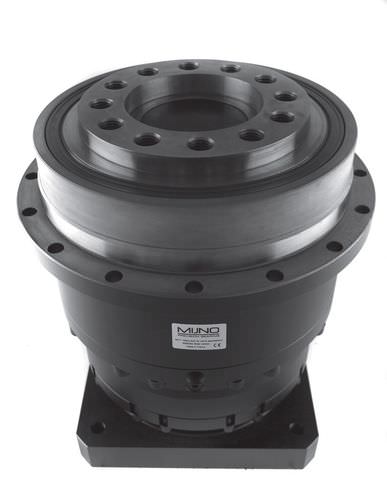

Planetary gear reducer BDB series

coaxial100 - 200 Nm> 10 kNm

Rotating output flange instead of traditional output shaft enables unique power transmission solutions Satellite gears have dual support in a massive cage providing high stifness : the gears remain in-line even in case of peak torque Output flange rotates on tapper roller bearings for maximal radial and axial loads. Very low backlash (5 to 1 arc-min max*) High radial load acceptance High axial load acceptance High torsional stiffness Up to 14 different ratios from 3 to 220. ISO or DIN output interface Easy 1 minute clamping into motor shaft (self locating input flange) Significant temperature range from -31°F to 266°F ,depending on options (-35°C to 130°C) Reinforced waterproofness (IP 65) Washdowned stainless steel version IP-67 & 1500 psi water jets available. Optional lubricating grease for the food-processing industry Easy maintenance LIKE ANY STANDARD MIJNO GEARBOX, THE BDB RANGE OFFERS: A high level of quality/traceability, due to the in house manufacturing of all internal mechanical components The highest quality of gears, with carburized, quenched and ground satellite gears, supplying power, precision, reliability and an everlasting, low backlash. Standard components which include bearings, lubricants, seals and joints from the most trusted international suppliers for quality without compromise A high efficiency (up to 96%) Numerous reduction ratios (multiple of 3, 4, 5, 7, 10) (other ratios available optional) A quick, easy and reliable assembly to the motor (without adapting flange)
