Screw hose clamp ASFA S

screw hose clamp
screw hose clamp
screw hose clamp
screw hose clamp
Add to favorites
Compare this product


Characteristics

Type
screw
Hose diameter

Max.: 240 mm
(9.449 in)

Min.: 16 mm
(0.63 in)

Description

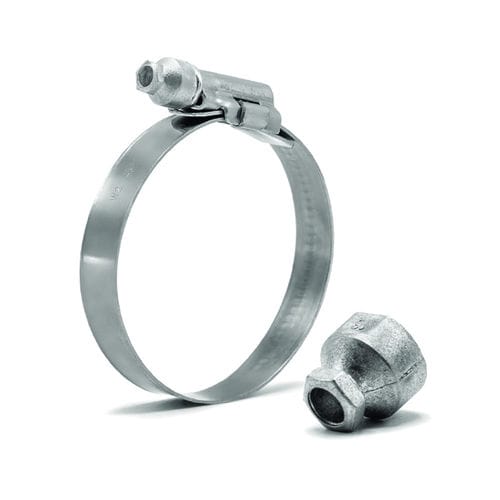

ASFA S (12mm) Hose Clamp with Torque Cap This system guarantees that the correct torque is applied to a clamp thanks to a torque cap which is fitted to the screw of the standard clamp. When the target torque is reached, the tip of the torque cap breaks off, making it impossible to apply more torque. The remains of the torque cap can then be left in place, making it impossible to apply more torque, or removed if more torque is required. These clamps are supplied with the torque cap in place and ready to be assembled. Material: Torque cap: Zamak 5 GD-ZnALU Cu1 Finish: Silver-White Corrosion resistance: 144h Salt Spray Test (ASTM B-117) Maximum tightening speed (RPM): 540 ±5
