Jaw coupling Starflex ALS AN series
elastomertransmissionfor stepper motors

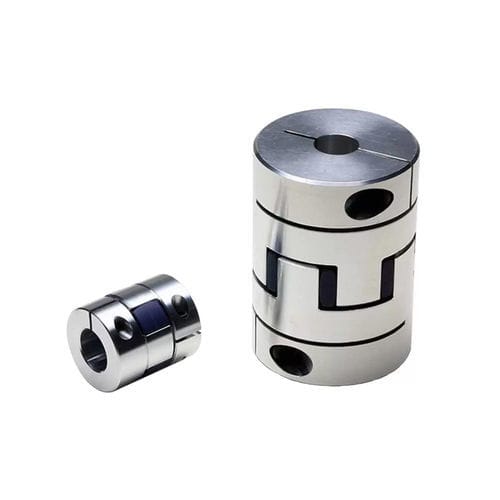

Jaw coupling - Starflex ALS AN series - Miki Pulley Europe AG - elastomer / transmission / for stepper motors
Jaw coupling - Starflex ALS AN series - Miki Pulley Europe AG - elastomer / transmission / for stepper motors
Jaw coupling - Starflex ALS AN series - Miki Pulley Europe AG - elastomer / transmission / for stepper motors - image - 2
Jaw coupling - Starflex ALS AN series - Miki Pulley Europe AG - elastomer / transmission / for stepper motors - image - 3
Jaw coupling - Starflex ALS AN series - Miki Pulley Europe AG - elastomer / transmission / for stepper motors - image - 4
Add to favorites
Compare this product

Go to the Miki Pulley Europe AG website for more information

Characteristics

Type
elastomer, jaw
Product applications
transmission, for stepper motors, for servo motors
Construction
3-part, aluminum, clamp
Performance
high-torque
Other characteristics
misalignment correction, anti-vibration
Installation system
shaft sleeve
Torque

Max.: 1,050 Nm
(774.44026 ft.lb)

Min.: 1.2 Nm
(0.88507 ft.lb)

Rotational speed

Max.: 10,000 rpm
(62,831.85 rad.min-1)

Min.: 3,700 rpm
(23,247.79 rad.min-1)

Description

The Starflex has a simple construction of two hubs with a flexible element inside. There are three types of elements that differ in hardness and fit. The flexible element is a polyurethane elastomer and allows vibration damping and offset compensation. - Element hardness: 90 JIS A/97 JIS A - Element as "tight fit" and "loose fit" available - RoHS compliant - Suitable for Servo-, Stepper- and Standard motors
