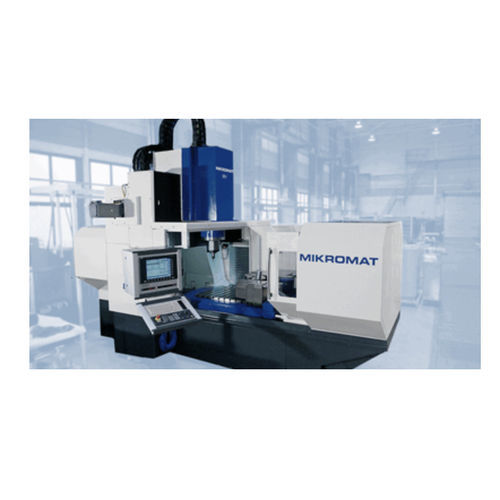

Vertical boring milling machine 8V5-axisfor automatic tool changershigh-precision
Add to favorites
Compare this product
Characteristics
- Spindle orientation
- vertical
- Number of axes
- 5-axis
- Applications
- for automatic tool changers
- Other characteristics
- high-precision, compact, automatic, modular, precision
- X travel
1,200 mm
(47.24 in)- Y travel
1,000 mm
(39.37 in)- Z travel
600 mm
(23.62 in)- Power
18 kW, 44 kW
(24.47318 hp, 59.82333 hp)
Description
The high-precision JIG-Compact Series for your milling processes
The MIKROMAT-8V Series is based on a dynamically and statically optimised design in portal. The optimally-dimensioned machine bed and the rigid portal guarantee, in combination with the high-precision linear guidance system, long-term precision in the high accuracy range.
The ATC (automatic tool changer) allows quick and precise tool changes, and turns the precision machine into a precision machining centre.
Table area LxW: - 1000 x 800 mm (optional 1000 x 1500 mm)
Max. table load: - 1500 kg
Dimensions: 6500 x 4500 x 3900 mm
Positional uncertainty: 0,002 mm
