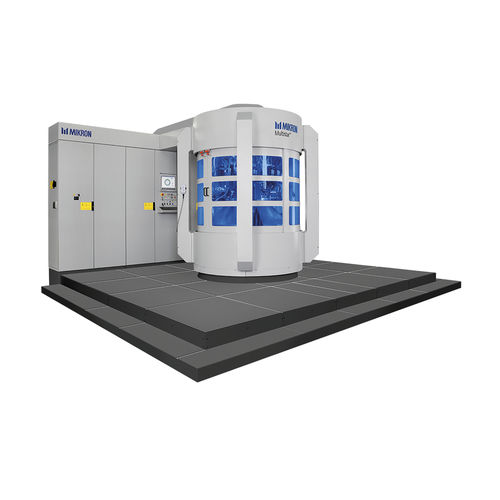

Rotary transfer machine Multistar NX-24

CNC24-positionprogrammable

What makes the Mikron Multistar NX-24 rotary transfer machine stand out? It’s its maximal CNC flexibility, its high productivity and extreme precision. The Mikron Multistar NX-24 is designed for batch production of several hundred to many thousands of highly complex and precise parts – at an unbeatable cost per part. The machine processes materials such as alloy steel, brass, titanium or aluminum – with maximum dimensions of Ø 35mm and maximum lengths of up to 65mm. The Mikron Multistar NX-24 is ideal for machining tasks in a wide range of industries such as automotive, watchmaking, medical, air conditioning and gas. Upgrade your batch production – discover the benefits of the Mikron Multistar NX-24! Benefits at a glance Productivity up to 30 parts per minute 24 workstations Up to 44 machining units working simultaneously Fast indexing rotary table Simultaneous machining from 2 sides per station: top, bottom, side or inclined High performance machining spindles 100% programmable and 100% versatile All axes are electronically controlled for quick changeover Various machining operations such as: Drilling, reaming, tapping, threading Milling with up to 4 axis interpolation Turning Recessing Deep hole drilling 3D deburring Others e.g. measuring, washing, assembly Extremely precise Rigid, compact and thermally stable design ±2.5µm table position repeatability High precision clamping collets High tech Mikron spindles In process gauging; tool and clamping compensation Automatic out of tolerance part separation Key Features Machining units: maximal flexibility and versatility Extended range of applications: Wide range of machining units available.
