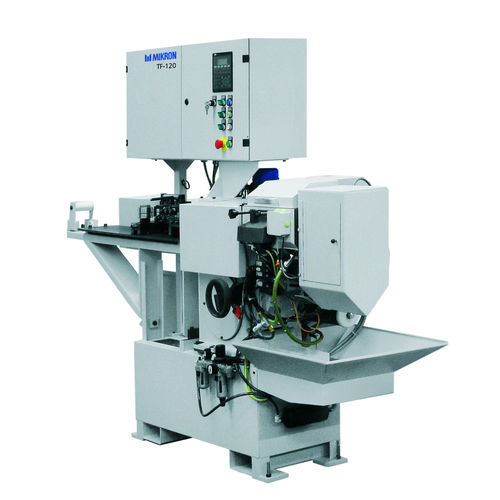

Wire straightening and cutting machine TF-120

automatic

The wire cutting machine Mikron TF-120 is a highly efficient pre-processing solution for straightening and sawing wire material. It is specially designed for the production of prefabricated small blanks to achieve a higher output rate on the transfer machines in the downstream process. Mikron’s wire cutting machine Mikron TF-120 can be paired with a pre-turning unit. This enables additional shaping elements such as notches – useful in industries that require intricate wire components with specific shapes and dimensions. With its advanced features and precision cutting capabilities, the Mikron TF-120 wire cutting machine provides businesses with an efficient pre-machining equipment for wire cutting operations. Features Production: without pre-turning unit up to 200 parts per minute, with pre-turning unit up to 50 parts per minute Maximum cutting length: 80mm Maximum cutting thickness: without pre-turning unit: brass ø 11mm, steel ø 7mm with pre-turning unit: ø 6.5mm for brass Benefits Improved productivity and output: Ability to cut up to four parts simultaneously Capability to combine with a pre-turning unit for further shaping elements Streamlined production process Time and effort savings Versatility: Ability to handle a wide range of wire materials Integrated solution with the Mikron Multistar for direct loading of pre-machined parts into subsequent production lines.
