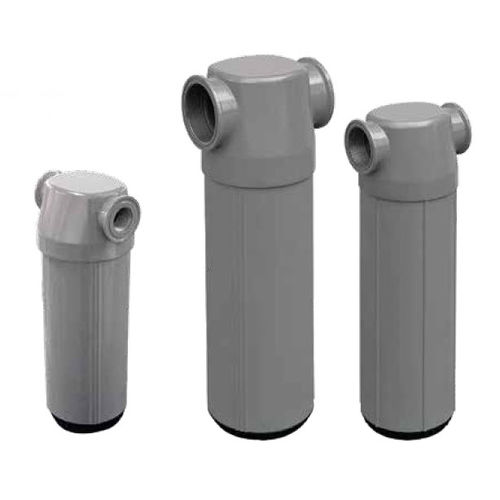

Centrifugal separator G WS series

watergasfor air compressors

Mikropor water separators have been designed for the removal of bulk liquid water and particulate from compressed air and gases. Unique centrifugal action removes contaminants at low-pressure drop for maximum energy saving. Mikropor water separators are available from 1/4”-3” pipe sizes and for flows up to 2200 m3/h (1294 cfm). Note: While highly efficient, condensate separators will not remove 100% of the oil from the air stream. Additional coalescing and particulate filters downstream may be required to remove the fine traces of oil, water and particles. Note: Automatic drain valves are fitted as standard. All separator bodies are coated with electrostatic powder paint finish both inside and out. Correction Factor For maximum flow rate, multiply model flow rate show in the above table by the correction factor corresponding to the working pressure.
