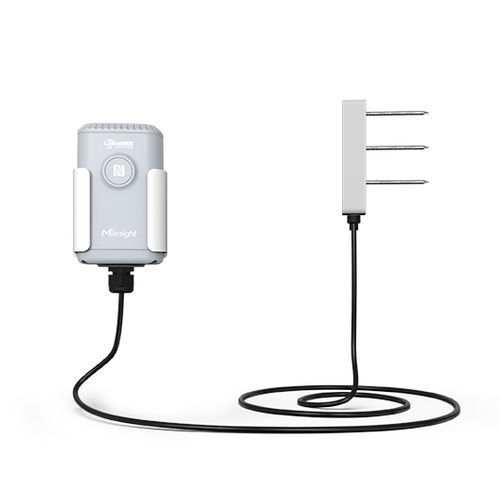

Soil humidity and temperature sensor EM500-SMT series

plug-infor integrationsurface-mount

Ursalink EM500 Series LoRaWAN Sensor (Environment Monitoring Sensor) Sensor Type: EM500-SWL Submersible Water Level Range: 0-200 m H2O Accuracy: ±0.5% FS Options: 3m/5m/10m EM500-SMT Soil Moisture & Temp Range: 0-100%/-20~80°C Accuracy: ±2%/±1°C LoRaWAN® - Frequency - CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923 Tx Power - 20dBm Sensitivity - -147dBm @300bps Mode - OTAA/ABP Class A Measurement - Range - 0% to 100% Accuracy - ±2% Physical Characteristics - Probe Length - 3m Power Supply - 19000 mAh Li-SOCL2 Operating Temperature - -30°C to +70°C Ingress Protection - IP66 (IP67 if required) Dimension - 105.4 × 71 × 69.5 mm (Sensor and cable are not included) Mounting - DIN rail, wall, pole mounting EM500-PT100 Temperature – PT100 Range: 50~200°C Accuracy: ±0.15°C EM500-UDL Ultrasonic Distance/Level Range: 0.3-5 m/0.5-10 m Accuracy: ±1% Options: 1 mm EM500-CO2 CO2 Range: 400~5000 ppm Accuracy: ±30 ppm EM500-PP Pipe Pressure Range: 0 ~ 1600 kPa Accuracy: ±0.3% FS EM500-LGT Light Sensor Range: 0 ~ 100000 lux Accuracy: ±3% For more information, you can visit us at www.ursalink.com
