- Dynamic homogenizer
- Milkotek-Hommak Machinery

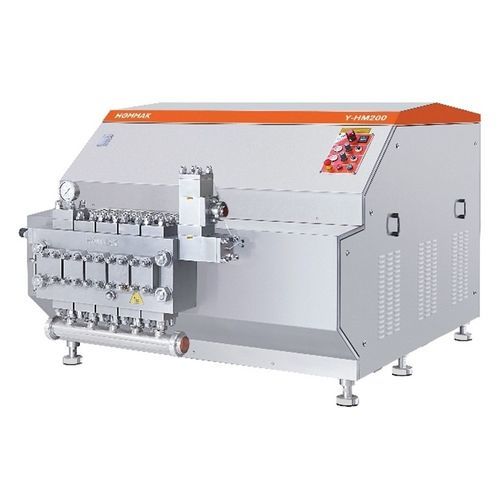

Two-stage homogenizer Y-HM200dynamicsolid/liquidstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- dynamic
- Product type
- solid/liquid
- Other characteristics
- stainless steel, automatic, single-stage, piston, two-stage, SIP
- Applications
- for the food industry, for the pharmaceutical industry, for the cosmetics industry, for the chemical industry
Description
Hommak Y-HM200 homogenizers / piston pumps are available with capacities from 15000-30000 lt/h as no stage, one stage or double stage depending on application.
• Desinged according to the EU safety rules (CE standarts)
• Engineered, manufactured and tested according to ISO EN 9001 Quality System
• Engineered and desinged for easy maintenance and clearing (CIP and SIP)
• Suitable for abrasive and viscous products
• Automatic homogenization pressure controller with pneumatic adjustment (optional manual)
• Stainless steel construction (Frame) and electrical panel board
• Less footprint with ergonomic design
• Sanitary design analog diaphragm high pressure gauge
• V belts drive train and gearbox speed reduction unit
• AC motor drive
• Made in Turkey
Homogenizer Technical Data
Power (kW) - 132
Number of Pistons - 5
Dimensions (LxWxH mm) - 1865x2465x1460
Weight (Kg) - 4500
Water Consumption (Lt) - 150
Gear Transmission Box Oil (Lt) - 60
Gear reducer Oil (Lt) - 21
