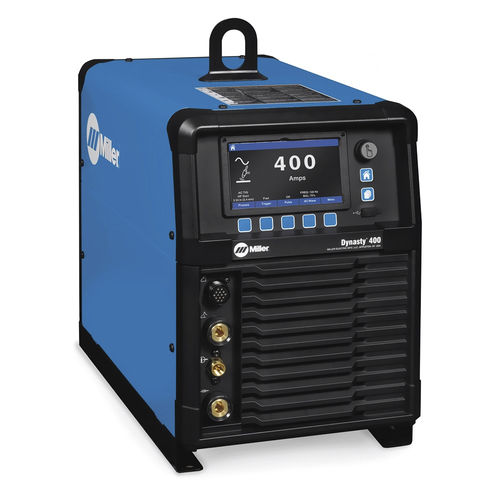

TIG welder Dynasty® 400

electrodethree-phasesingle-phase

Latest technology - powerful, compact AC/DC inverter delivers superior arc performance with total AC arc-shaping capabilities. Auto-Line™ allows connection to any voltage or frequency in the world while using half the power of a conventional machine. • 8 ft. (2.4 m) primary cord • (2) 50 mm Dinse style connectors Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images AC TIG Features Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode. Extended AC balance (30–99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum. AC frequency (20–400 hz) controls the width of the arc cone and the force of the arc. DC TIG Features Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage. An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 3.5. The power switch on the Dynasty also activates the receptacle to help prevent torch failure. Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions. Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
