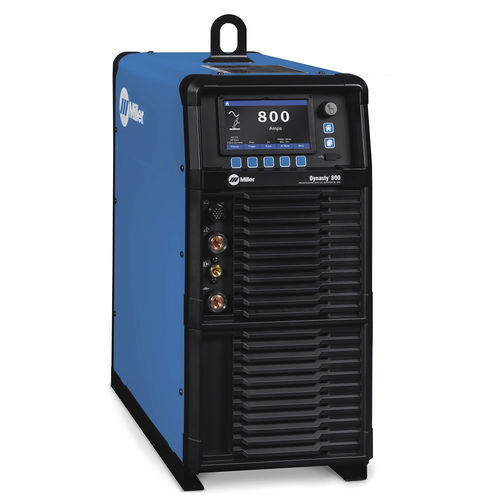

TIG welder Dynasty® 800

arcelectrodethree-phase

The Dynasty 800 is a powerful, compact power source capable of welding up to 1" aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines. • Dynasty® 800 • (1) Water cooled thread lock torch adapter (225028) for #18 or #20 torches Intuitive Interface LCD Display Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images. AC and DC TIG Features AC TIG Features Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode. Extended AC balance controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum. AC frequency (20–400 hz) controls the width of the arc cone and the force of the arc. DC TIG Features Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage. AC Waveforms Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds. Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action. Sine wave is for customers that like a traditional arc. It is quiet with good wetting. Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.
