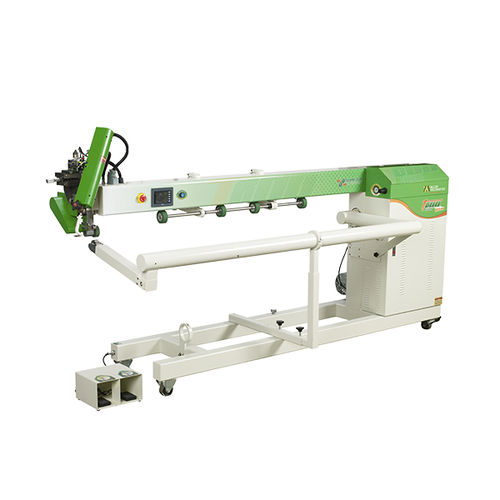

Wedge welding machine T-600 Extreme Curve

hot airautomaticseam

For Large, Heavy PRODUCTION DEMANDS 4220 Alabama Ave | Navarre | Ohio | 44662 | USA | T. 330-833-6739 | sales@weldmaster.com Built for the toughest production demands, the Miller Weldmaster T600 Extreme® provides the versatility of a multi-function machine for your large products. T600 Extreme accepts fabrics up to 2m (78.7”)wide to pass through the throat without folding. Hot Air & Wedge Welding Applications: •Woven Polypropylene •Woven Polyethylene •PVC Laminate •PVC Coated •Polyurethane Coated •Polypropylene •Acrylic +More... Technical Specification Power Requirements: 208-240 Volts - Single Phase - 25 Amp. 380-400 Volts - Single Phase - 16 Amp. Air Requirements: 2cfm @ 100psi Power Consumption: Approx. 6kW Maximum Temperature: Hot Air: 730°C/1,346°F Hot Wedge: 450°C/842°F Throat Width: 2.03m (79.9”) Dimensions: Width: 0.6m (23”) Length: 3m (120”) Height: 1.5m (59”) Weight: 680kg/1,500lb Seam Width: 10-50mm/0.39-1.97 inches** Welding Cycle: Up to 30m/min (100ft/min) FEATURES & BENEFITS 1. Easy operation touch screen with recipe storage for quick setting recall. 2. Equipped for increased product versatility. 3. Inboard and outboard fabric puller for easier fabric handling. 4. Quick, repeatable head adjustments for precise product positioning. 5. Available with hot air, hot wedge or equipped with both for product versatility. 6. Quick easy guide changeable for multiple seam configurations.
