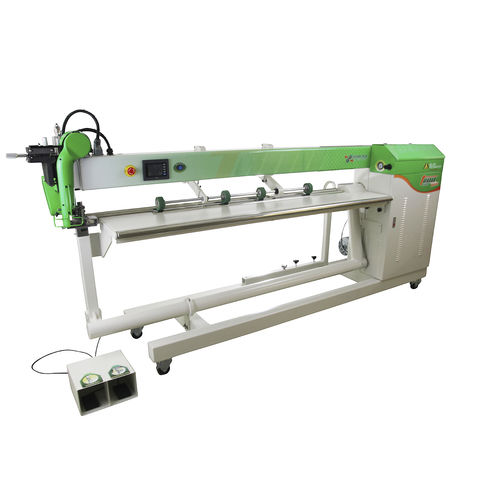

Wedge welding machine T-600 Extreme Shelter

hot airautomatic

For Large, Heavy PRODUCTION DEMANDS Built for the toughest production demands, the Miller Weldmaster T600 Extreme® provides the versatility of a multi-function machine for your large products. T600 Extreme accepts fabrics up to 2m (81”)wide to pass through the throat without folding. Hot Air Welding Applications: •Woven Polypropylene •Woven Polyethylene •PVC Laminate •PVC Coated •Polyurethane Coated •Polypropylene •Acrylic +More... Hot Wedge Welding Applications: •Woven Polypropylene •Woven Polyethylene •PVC Laminate •PVC Coated •Polyurethane Coated •Polypropylene •Acrylic +More... Technical Specification Power Requirements: 208-240 Volts - Single Phase - 25 Amperes 380-400 Volts - Single Phase - 15 Amperes Power Consumption: 6Kw Air Requirements: 100 PSI @ 2 CFM Maximum Temperature: Hot Air: 750OC - Hot Wedge: 450OC Throat Width: 2.03m Dimensions: Width: 3m Length: 3m Height: 630m Weight: Approx. 558KG/1230LB Seam Width: ' 0.01 - 0.05m** Welding Cycle: Up to 30m/min (100ft/min)*
