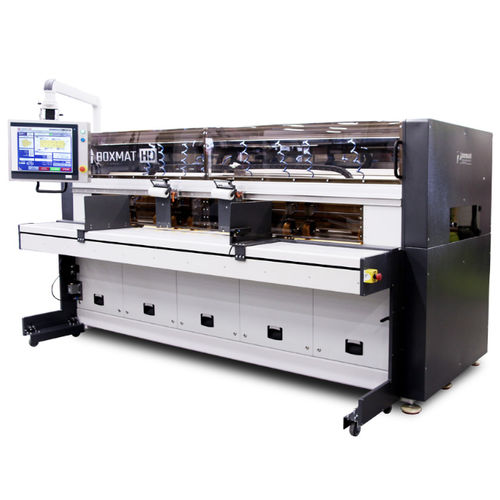

Automatic box making machine BOXMAT HD

The BOXMAT HD is the newest heavy-duty corrugated box making system for highly demanding short-run manufacturing processes. This machine can be fully configurable to be used with manual feed, a printer, or a precision corrugated feeder. Select one of the 100 box styles saved and the machine will begin slotting, cutting, scoring, creasing, board trimming, die-cutting and gluing ALL IN ONE MACHINE! Features and Benefits One pass operation to make a perfect box Single, Double wall and Heavy-Duty board Finish Single Corrugated Sheets or Fanfold Option Counter-knife and counter scoring/creasing system Large 19” touch screen HMI JQS Job Queue System production scheduling Box Design WIZARD 3D product scanning can scan dimension and weight capabilities MRP/ERP manufacturing integration system Manual or fully automatic feed with detachable cardboard feeder Intuitive software with APC capabilities and remote control All tool nests can handle either scoring/creasing wheels or knives and automatic tool recognition Cutting tools are equipped with counter-creasing and counter-knife system Ability to set the tools inline, one-after-another, e.g. for double creasing of heavy boards Die cutting system with extra built-in beam equipped with two die-cutting units. Each die with a work area of 210x130 mm (8.25x5.1”) and independent drives to automatically position Switchover time – less than 30 seconds Fully automatic servo-drive setup Independent drive for each tool nest provides fast position setup Minimum distance between tools: 30 mm [column]
