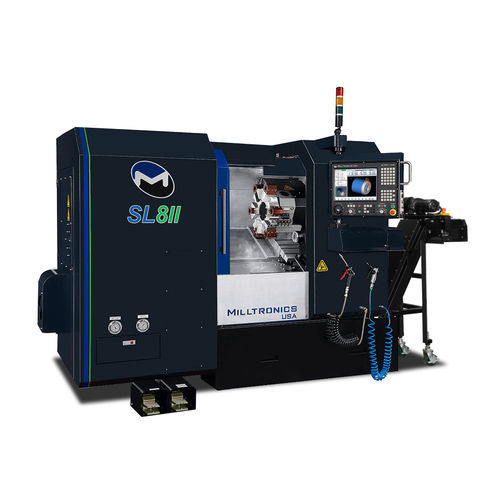

CNC turning machine SL8-IIvertical2-axisA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Diameter
550 mm
(21.65 in)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 4,000 rpm
(25,132.741 rad.min-1)- Maximum cutting diameter
356 mm
(14 in)- Maximum cutting length
533 mm
(21 in)- Bar capacity
78 mm
(3 in)- Axe X
203 mm
(8 in)- Axe Z
533 mm
(21 in)- Rapids on X
30 m/min
- Rapids on Z
30 m/min
- Nominal power
15 kW, 23.2 kW
(20.4 hp, 31.5 hp)- Maximum torque
219 Nm
(162 ft.lb)- Overall lenght
4,486 mm
(177 in)- Overall width
2,651 mm
(104 in)- Overall height
2,127 mm
(84 in)- Weight
4,030 kg
(8,885 lb)
Description
The SL8-II has an 8″ 3-jaw chuck, a maximum turning diameter of 14″, maximum turning length of 20.7″ and a 3.2″ spindle bore. This popular size machine has a 22 HP spindle motor and a 4,000 RPM spindle. Standard with a 12-station auto turret. Options include chip conveyor, tailstock, and tool presetter.
Standard Features
• 3-jaw hydraulic chuck with foot switch
• 12 position auto turret with 1″ slots
• True slant bed with one-piece base casting
• Linear motion guideways with roller type bearings
• Full enclosure with sliding door
• Flood coolant
• Auto lubrication
• Part, wire frame & solid model graphics
• Constant Surface Speed (CSS)
• 120 GB solid-state hard drive
• 15″ LCD color touch screen display
• Spindle load meter
• LCD hour meter
• One-year warranty
Add-on Options
• Parts catcher
• Mist collector
• Bar feed interface
• Bi-directional turning cycle
• Automatic tool setter
• Hydraulic tailstock
• Additional spare “M” functions
• Chip conveyor
• Oil skimmer
• Collet chucks
• Digital Setup Assistant
• Milltronics Shop View
