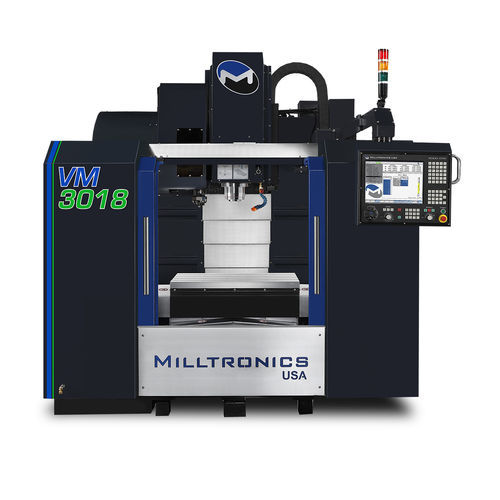

3/4-axis CNC machining center VM3018

3/5-axisverticalCAT40

With a 34″ x 18″ table (table width matches the Y-travel) this 30″ x 18″ x 20″ CNC mill packs a 20 HP spindle motor and 10,000 RPM BIG-PLUS® spindle and more. Standard Features Heavily ribbed one piece fine grain cast iron casting Fully enclosed machine guard with side doors 30/35 mm linear way technology Precision ground ballscrews supported at both ends Precision ground table surface Telescopic metal way covers 20 pocket double arm ATC Automatic positive displacement lubrication system High torque AC digital servo drives High torque closed loop vector spindle drive system Work light (right side) LCD hour meter Spindle taper blow-out and tool release button Spare “M” function with CNC “wait” channel Programmable on/off flood coolant system Rigid tap Edit key lockout switch Spindle load meter Feedrate and spindle speed overrides Spindle air purge End of cycle light Add-on Options Coolant through spindle system Part and tool probes Chip auger chip removal system Lift up chip conveyor chip removal system Remote handwheel Auxiliary industrial grade keyboard Electronic spindle chiller Air gun Coolant wash down gun Additional work light (left side) BT style tooling ChipBoss™ Trochoidial Milling Software Milltronics Shop View Digital Setup Assistant
