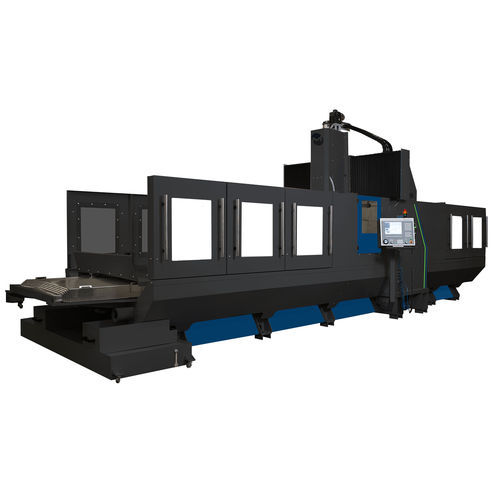

3-axis CNC milling machine BR6150IL
verticalwith rotary tableCAT40

3-axis CNC milling machine
3-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with rotary table
Spindle mount
CAT40
Number of tool stations
24 tools
Other characteristics
high-speed
X travel

3,800 mm
(149.61 in)

Y travel

1,525 mm
(60.04 in)

Z travel

710 mm
(27.95 in)

Rotational speed

10,000 rpm, 15,000 rpm
(62,832 rad.min-1, 94,248 rad.min-1)

Power

11 kW, 18 kW, 26 kW
(14.96 hp, 24.47 hp, 35.35 hp)

Work feed X-axis

19,000 mm/min, 25,400 mm/min
(12 in/s, 17 in/s)

Work feed Y-axis

19,000 mm/min, 25,400 mm/min
(12 in/s, 17 in/s)

Work feed Z-axis

19,000 mm/min, 25,400 mm/min
(12 in/s, 17 in/s)

Table load capacity

2,270 kg
(5,004 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

9,950 kg
(21,936 lb)

Overall length

3,692 mm
(145.4 in)

Overall width

9,635 mm
(379.3 in)

Overall height

3,835 mm
(151 in)

Description

Our most popular BR Series bridge mill CNC machine at 150″ x 60″ x 28″, the high-speed BR6150IL has a 60″ x 150″ table and a 24 HP dual wound 10,000 RPM #40 taper BIG-PLUS inline spindle. Available with an optional full enclosure and/or a 24 station tool changer. Standard Features Milltronics 9000-DGI CNC 1.73 in (45 mm) linear roller way technology 24/15 HP 2 speed spindle motor Spindle air purge X-axis metal way cover construction 12-inch LCD color display Networking Automatic lubrication Tri-color end of cycle light 1,000 IPM rapid traverse rate Solid model graphic display LCD hour meter Single spare “M” function 120 GB program storage memory One year warranty Add-on Options 35/25 HP two speed spindle motor Spindle chiller Milltronics rotary tables Tool and part probing Thermal head mapping Additional spare “M” functions Chip management system (enclosure, flood system, lift-up conveyor) Coolant thru spindle* 40 pocket ATC (BR80 sizes only) Programmable spray mist and air blast Digital Setup Assistant Milltronics Shop View ChipBossTM Trochoidal Milling Software Removable doors
