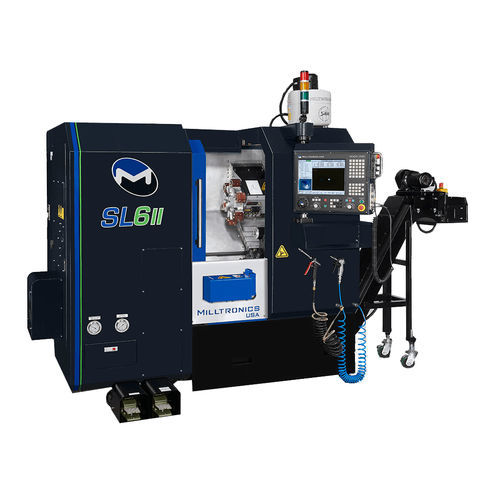

CNC turning machine SL6-II2-axisA2-512 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools
- Diameter
405 mm
(15.94 in)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 6,000 rpm
(37,699.112 rad.min-1)- Maximum part length
340 mm
(13 in)- Maximum cutting diameter
316 mm
(12 in)- Maximum cutting length
340 mm
(13 in)- Bar capacity
56 mm
(2 in)- Axe X
178 mm
(7 in)- Axe Z
356 mm
(14 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
7.5 kW, 13 kW
(10.2 hp, 17.7 hp)- Maximum torque
113 Nm
(83 ft.lb)- Overall lenght
2,504 mm
(99 in)- Overall width
3,745 mm
(147 in)- Overall height
2,193 mm
(86 in)- Weight
3,200 kg
(7,055 lb)
Description
The SL6-II has a 6″ 3-jaw chuck, a maximum turning diameter of 12″, maximum turning length of 13″. This model has a 17 HP spindle motor and a 6,000 RPM spindle. Standard with a 12-station auto turret.
Standard Features
Chip conveyor
3-jaw hydraulic chuck with foot switch
Bi-directional turning cycle
Tail stock
12 position auto turret with 1″ slots
True slant bed with one-piece base casting
Linear motion guideways with roller type bearings
Full enclosure with sliding door
Flood coolant
Auto lubrication
Part, wire frame & solid model graphics
Constant Surface Speed (CSS)
120 GB solid-state hard drive
15″ LCD color touch screen display
Spindle load meter
LCD hour meter
One-year warranty
Add-on Options
Parts catcher
Mist collector
Bar feed interface
Automatic tool setter
Hydraulic tailstock
Additional spare “M” functions
Oil skimmer
Collet chucks
Digital Setup Assistant
Milltronics Shop View
