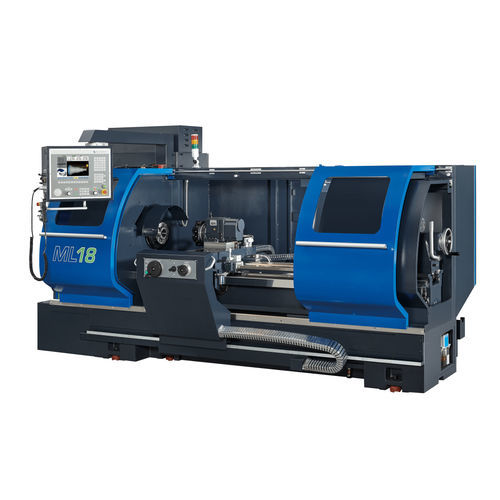

CNC turning machine ML18/60

2-axisD1-6

With a generous swing of 19,” length of 60″ and a 2.56″ spindle bore, the ML18/60 is our most popular tool room lathe. Featuring a 24 HP, 2,600 RPM spindle it produces 255 ft-lbs. of torque. Standard with an 8 station electro-mechanical turret. Options include chucks and chip conveyor. Standard Features 15-inch LCD color display Solid model graphic display 120 GB program storage memory DXF file import Networking 35 mm linear way technology Automatic lubrication Spindle load meter Flood coolant with enclosure Thread chasing feature (most models) 500 IPM rapid traverse rate LCD hour meter One year warranty Add-on Options 10 or 14 in bore options for ML35 and ML40 Live tooling option for ML22 and larger lathes Lift-up chip conveyor Additional tool holders Hydraulic quill for tailstock (most models) Bi-directional turning cycle Pneumatic 5C collet closer (ML16) Additional spare “M” functions Automatic tool turrets Tool posts Steady rest Follow rest Digital Setup Assistant Milltronics Shop View
