Oleodynamic press BV 32 E PLUS

assemblytestdie-spotting

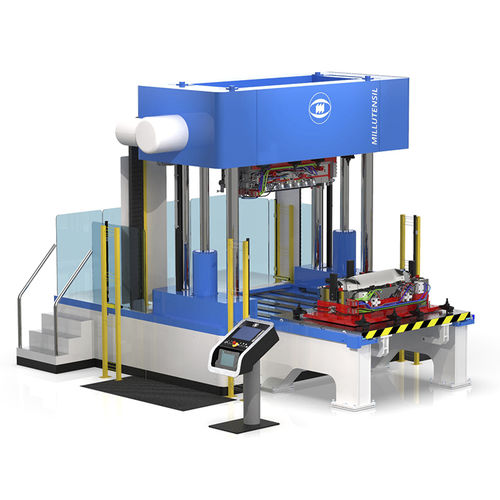

Advanced-version for medium size moulds. BV 32 E PLUS and BV 33 E PLUS are the advanced version with a hydraulic system controlled by electronic servo proportional valves and a control of parallelism through two specific linear transducers. Both models are equipped with user-friendly graphics control panel, monitored through Siemens PLC commanded by Touch Panel installed in a pulpit station. Platen dimensions are 1.600×1.300 mm (62X51 inches). The max. load capacity on lower plate is 16.000 kg, (minor capacity in the model with option -R 10.000 Kg or option -G/-RG 8.000 kg) while on the upper plate is 10.000 kg. The difference between the two versions is the max. Clamping force, 1.200kN in the BV 32 E PLUS against 1.500kN in the BV 33 E PLUS. As all series, the BV 32/33 E series is offered with option -R, -G or -RG version and can also be equipped with all optional accessories. Lower plate Hydraulic cylinders drive the lower extensible plate outside the columns in an easily accessible position for the work outside the press. It slides on roller bearings and is laterally guided by ball bearings, completely friction- and wear-free. In the final position, the plate comes down and is held by 4 hydraulic cylinders, thus completely leaning on specific ground support bands. The system guarantees high repeatability accuracy equal to ± 0,04 mm. Lower plate tilting by 75° or 90° only available on the E series Thanks to 2 hydraulic cylinders, the lower plate can be tilted up to 75° or 90°, on the short back side, to operate on the mould at an ergonomically better position. Tilting movements (and automatic locking) are controlled by the touch panel.
