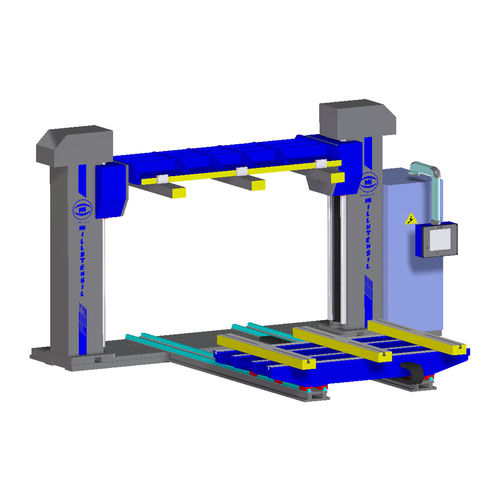

Die splitter AM 5045

The die-splitter was developed following our customers’ needs to easily handle big moulds, also in the sheet metal sector. The die-splitter is an innovative, versatile and efficient solution, in line with the increasing automation of the manufacturing process and with the higher and higher safety standards. Advantages of the AM series: Remarkable reduction of assembly and maintenance theme. Ergonomic positions for performing work on the dies. Extremely easy die handling. Solutions for small and medium dies Die – splitter used for assembly, adjustment, checking and repair of dies for blanking, die casting, etc. with a very stable structure and a robust base made of welded, normalized steel. The plates of the die-splitter have 2 large cavities that give the operator direct access to the lower parts of the die – halves, allowing rapid assembly and disassembly of the various parts of the dies. The lower plate is removable and slides on the base plate via ball bearings and is hydraulically actuated to move the lower part of the die outward (to the back of the die splitter), rotated by 90° to provide access to any part of the half – mould. As the removable plate returns back to its initial position, it stops mechanically and precisely, to ensure perfect repositioning, along with repeatability of the die halves’ closure. The hydraulically actuated upper plate slides vertically on four guide columns and can rotate by 360° by reduction ears, to bring the upper die half in a comfortable position for working on it. The clamping of the upper plate in the exact horizontal position is ensured by four hydraulically actuated locating pins. Solutions for big dies Die – splitter us
